Segger J-Link 6-pin Needle Adapter (8.06.16)
ID: 233841
5906623416639
zł545.42
Tax included
zł443.43 tax excl.
J-Link 6-pin Needle Adapter (8.06.16)
Description
The J-Link 6-pin Needle Adapter has been designed to connect the J-Link/Flasher to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures, that the adapter can not be connected the wrong way. The Needle Adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the 20-pin 0.1 inch to a 6-pin needle connector.
J-Link 6-pin Needle Adapter is compatible with J-Link BASE, J-Link PLUS, J-Link PRO, J-Link ULTRA+, J-Link EDU, Flasher ARM, Flasher RX, Flasher PPC and Flasher Portable.
Note: If JTAG support is required, use the J-Link 10-pin Needle Adapter instead, since the 6-pin Needle Adapter does not provide enough pins for JTAG.
Why to choose the J-Link 6-pin Needle Adapter
- No additional connector required on your PCB
- Very small footprint - even smaller than the footprint of the J-Link 10-pin Needle Adapter.
- High reliability spring pins for secure connections
- Designed with 3 locating pins, so the adapter can not be connected the wrong way
These features make the J-Link 6-pin Needle Adapter the perfect solution for debugging and production purposes.
Pinout
As you can see on the image below, the three locating pins ensure, that the adapter can not be connected to the PCB the wrong way. Moreover, the two "legs" on each side of the connector guarantee a stable and secure contact between pins and the PCB.
Footprint - top view
Layout problems to avoid
Please ensure to avoid the situations illustrated below to ensure the J-Link 6-pin Needle Adapter functions properly.
Schematics
The following picture shows the connections from the 20pin standard JTAG connector to the 6-pin, 0.05 inch needle pattern:
233841
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
Hi-Speed JTAG/SWD Emulator for ARM7/9, Cortex and Renesas RX cores with USB interface, Segger
zł4,099.82
24h
Available quantity: 2
Available
JTAG/SWD Emulator for ARM7/9, Cortex and Renesas RX cores with USB interface, Segger
zł3,106.68
24h
Available quantity: 2
Available
No product available!
J-Link 19-pin Cortex-M Adapter, RoHS, Segger
zł169.33
24h
Available quantity: 2
Available

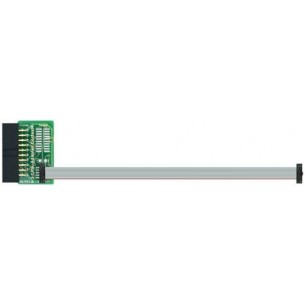

J-Link 9-pin Cortex-M Adapter, RoHS, Segger
zł168.14
Delivery date unknown
No product available!
No product available!
J-Link 14-pin TI Adapter, RoHS, Segger
zł260.56
Delivery date unknown
No product available!
Other products in the same category (16)
J-Link Needle Adapter - connect J-Link to a PCB, Segger
zł521.14
24h
Available quantity: 9
Available
An adapter that converts a standard 20-pin 2.54 mm connector to a 10-pin 2.54 mm connector. It enables the connection of Segger programmers with Silicon Labs devices and development boards with a C2 interface. Segger SiLabs C2 Adapter (8.06.17)
zł361.60
3 weeks
No product available!
A set of three SON/DFN adapters enables easy testing and programming of flash devices in these packages, eliminating the need for dedicated solutions for each form factor. The adapters are compatible with the SEGGER (Q)SPI Flash Evaluator and other test systems, making them a versatile tool for both test and production. SEGGER (Q)SPI Flash Evaluator Adapter board Pack for SON/DFN (6.40.03)
zł617.53
3 weeks
No product available!
The Intel FPGA Adapter (formerly J-Link Altera Adapter) connects to the Intel FPGA 10-pin JTAG connector, enabling debugging of FPGA-based MCU cores such as the dual-core Arm Cortex-A9 in Cyclone V devices. on Intel FPGA solutions.
zł287.82
3 weeks
No product available!
An adapter that allows you to connect a 20-pin 0.1" connector to a 10-pin connector, allowing you to easily connect J-Link or Flasher programmers to your PCB using through-wires. It is ideal for prototyping, testing new designs and working with ST Discovery boards, offering flexibility, speed and time savings when making design changes.Segger Flying Wire Adapter (06.08.27)
zł355.88
3 weeks
No product available!
The adapter is designed to support a wide range of RL78 microprocessor cores manufactured by Renesas, such as the RL78/D1A, RL78/F12, RL78/F13, RL78/F14, RL78/F15, and the RL78/G and RL78/I series. The adapter enables quick and easy connection to target devices, providing full flash programming functionality, making it a versatile tool for industrial and embedded applications. Segger RL78 Adapter (06/08/20)
zł256.43
3 weeks
No product available!
Adapter from the standard 20-pin 2.54 mm connector to the 10-pin 1.27 mm connector often used in Cortex-M boards. Segger 50-Mil 10-Pin Patch Adapter (8.06.28)
zł255.25
3 weeks
No product available!
A compact reference platform that enables rapid testing and verification of trace configurations, providing excellent signal quality for analysis. With the NXP iMX RT1051/52 microcontroller and support for the SWD debug interface, the board provides high performance and flexibility in monitoring system performance. Segger NXP iMX RT1050 Trace Reference Board (6.68.19)
zł1,036.19
3 weeks
No product available!

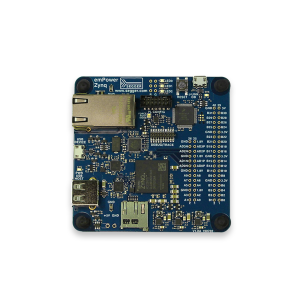

Advanced evaluation board designed for rapid implementation of embedded solutions. Supporting the embOS operating system and SEGGER tools such as emFile, emWin, emUSB and emNet, the board is an ideal platform for software testing and application development in an environment based on the Xilinx Zynq XC7Z007S SoC with ARM Cortex-A9 processor and Artix7 FPGA. Segger emPower Zynq (6.31.00)
