MiniWare MDP-P906 - 300W 30V 10A laboratory power supply unit
search
  • MiniWare MDP-P906 - 300W 30V 10A laboratory power supply unit
  • Set
ID: 1183562
6970634010932
zł813.45
Tax included

zł661.34 tax excl.

A programmable linear DC power supply based on a modular design. It has one output channel with up to 30 V and up to 10 A of current. MiniWare MDP-P906

24h
Available
Available quantity: 11
Kamami is the official distributor of Miniware soldering irons, power supplies and measuring tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The MiniWare MDP-P906 is a small laboratory power supply that can be used in the electronics workshop as well as R&D or quality control departments. It is designed for use with the MDP-M01 control module. It can be programmed and allows parallel connection to other modules. It is equipped with a display for easy reading of data.


The power supply features efficient cooling to maintain adequate operating temperatures. It supports DC, QC and PD power supply. The input of the power supply ranges from 4.2 V to 30 V and can draw up to 14 A. The output of the power supply is adjustable from 0 to 30 V and 0 to 10 A, for a total device power of up to 300 W. The power supply achieves a high efficiency of 95%. Output resolution is 10 mV and 2 mA, and accuracy is 0.03% + 5 mA and 0.05% + 2 mA. The power supply's ripple is low at less than 250uVrms and less than 2mArms, ensuring stable operation.


The power supply has numerous protections including overvoltage, reverse polarity, overload, overheating and reverse current. It is also possible to update the power supply's software via a USB connection.

Features

  • Compatible with control module MDP-M01
  • Programmable functions

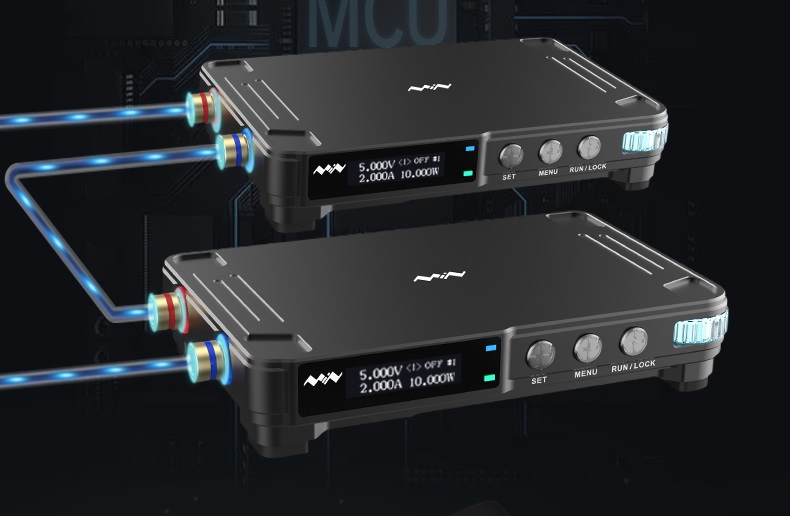

  • Can be connected to other modules in parallel
  • Display
  • Efficient cooling
  • Support for DC, QC and PD power supply
  • Input: DC 4.2 V to 30 V, 14 A
  • Output: 0 to 30 V, 0 to 10 A
  • Power: 300 W
  • Efficiency: 95%
  • Output resolution: 10 mV, 2mA
  • Accuracy: 0.03%+5mA, 0.05%+2mA
  • Ripple: <250uVrms, 3mVpp, <2mArms
  • Response time: 4 us
  • Protection against overvoltage, reverse polarity, overload, overheating, reverse current
  • Software update via USB
  • Dimensions: 112 x 66 x 20 mm
  • Weight: 181 g

Kit contains

  • MDP-P906 power supply unit
  • 2 x cable
  • Manual
1183562

Data sheet

Output voltage
0-30 V
Output current
10A
Number of channels
1

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
