NPS306W - Wanptek laboratory power supply 0-30V 6A
ID: 584069
zł234.35
Tax included
zł190.53 tax excl.

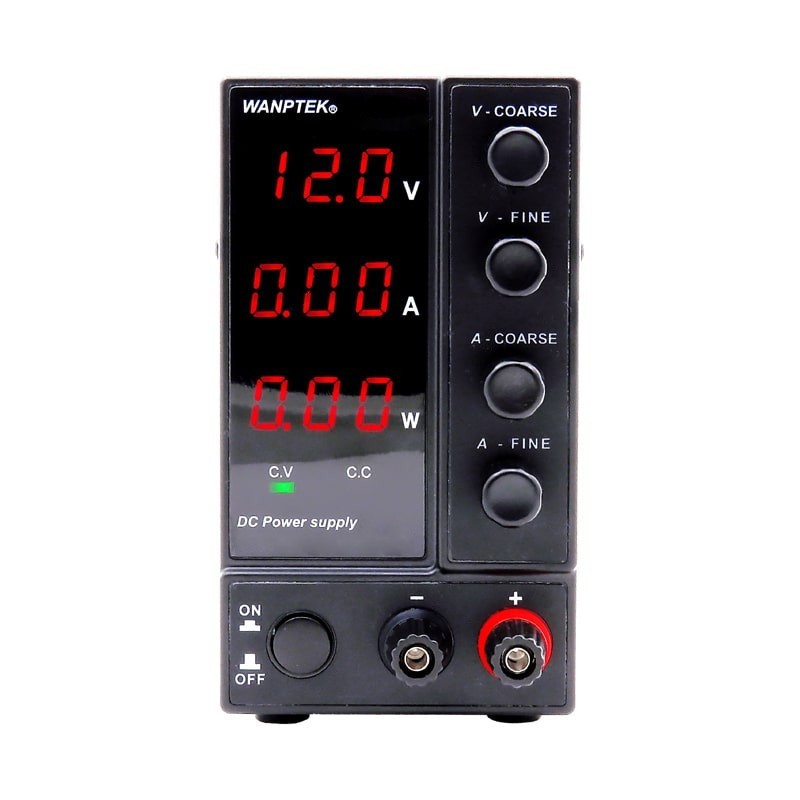

Laboratory power supply from Wanptek with smooth voltage regulation in the range from 0 to 30 V and current in the range from 0 to 6 A. Wanptek NPS306W
Description
Stabilized laboratory power supply Wanptek with smooth voltage regulation in the range from 0 to 30 V and current in the range from 0 to 6 A. It has a built-in display and a fan ensuring proper cooling. The power supply can work in two modes: C.V. (DC output voltage) and C.C. (constant load current). It is equipped with protection against short circuit, overheating and overload. Thanks to its small dimensions, electronics will be perfect for every workshop.
Attention!
Before connecting the power supply, make sure that the voltage switch next to the power connector is in the 230V position. Connecting the power supply at the 110V setting will permanently damage the device.
Features
- Voltage range: 0 to 30V
- Current range: 0 to 6 A
- Power: 180 W
- Voltage resolution: 100 mV
- Current resolution: 10 mA
- CV (constant voltage) mode
- Voltage stability: 0.1% ± 3 mV
- Load stability: 0.2% ± 3 mV
- Ripple voltage: = 0.5% Vp-p
- CC (Constant Current) Mode
- Current stability: 0.1% ± 3 mA
- Load stability: 0.2% ± 3 mA
- Ripple current: 0.5% Vp-p
- Temperature coefficient: = 100ppm/℃
- One-channel output
- Automatic CC/CV switching
- Coarse / fine voltage and current regulation
- Overload protection function
- Overheating protection function
- Short circuit protection function
- Quiet fan
- Display (accuracy)
- Voltage: 0.1V
- Currents: 0.01 A.
- Power: 0.01 W
- Working temperature: 0 ℃ to 40 ℃
- Dimensions: 70 x 130 x 230 mm
- Weight: 1.3 kg
Kit contains
- Laboratory power supply Wanptek NPS306W
- Power cord
- Cables for the power supply
- User manual
584069
Data sheet
- Output voltage
- 0-30 V
- Output current
- 6A
- Number of channels
- 1
