SIM8202G-M2 5G HAT (EU) - kit with 5G module SIM8202G-M2 for Raspberry Pi
ID: 584354
zł1,487.92
Tax included
zł1,209.69 tax excl.
The set with the SIMCom 5G module SIM8202G-M2 designed to work with the Raspberry Pi minicomputer. It supports 5G SA or NSA networks and is backwards compatible with 4G and 3G networks. Waveshare SIM8202G-M2 5G HAT (EU)
Description
The set with the SIMCom 5G module SIM8202G-M2 designed to work with the Raspberry Pi minicomputer. It is based on the Qualcomm Snapdragon X55 chip, which guarantees multi-band frequency support, thanks to which the device can be used in countries and regions such as China, Japan, South Korea, Europe or the Middle East. It supports 5G SA or NSA networks and is backwards compatible with 4G and 3G networks. SIM8202G-M2 supports positioning within GPS, GLONASS, Beidou, Galileo and QZSS systems, Dial-up function and communication with devices in the cloud. It is supported by AT commands.
The base board is equipped with an M2 connector, thanks to which it enables connection with various 4G or 5G communication modules with an M2 connector. The board also has a USB 3.1 port, an audio jack, a decoder and a SIM card slot. The set is connected to the Raspberry Pi using a standard 40-pin connector.

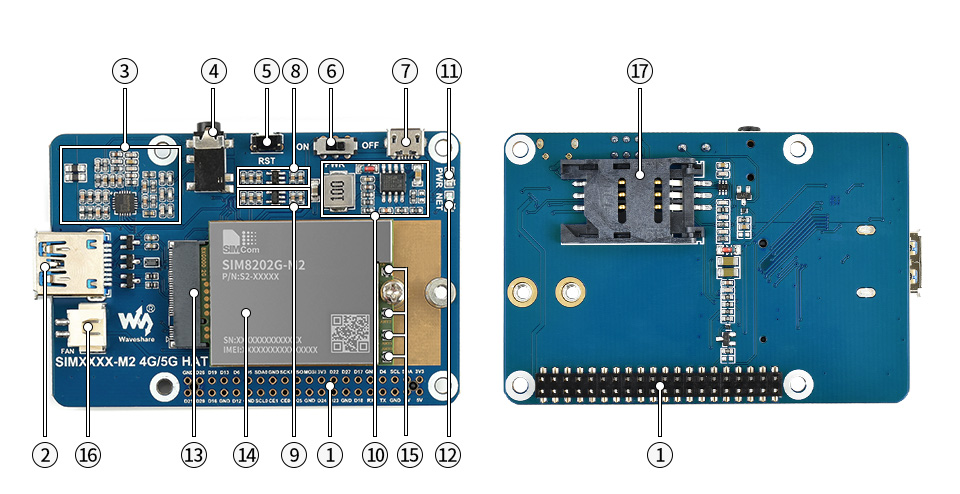

| 1. 40-pin header | 10. 5V to 4,3V translator |
| 2. USB 3.1 | 11. Power supply LED |
| 3. Audio circuit | 12. Network LED |
| 4. Jack connector | 13. M.2 connector |
| 5. Reset | 14. SIM8202G-M2 |
| 6. Power switch | 15. Antenna connector |
| 7. Input 5V/3A | 16. Fun connector |
| 8. 5V to 3,3V translator | 17. SIM slot |
| 9. 5V to 1,8V translator |
The set includes a housing, antennas and a cooling fan. Full documentation is available on the product Wiki page.
Features
- SIMCom 5G SIM8202G-M2 modem with Qualcomm SDX55 chip
- Frequency band:
- Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79
- LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71
- LTE-TDD B34/B38/B39/B40/B41/B42/B48
- WCDMA B1/B2/B3/B4/B5/B8
- GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
- Data transfer rate:
- Sub-6G 4 Gb/s (Download) and 500 Mb/s (Upload)
- LTE 2 Gb/s (download) and 200 Mb/s (upload)
- HSPA 42 Mb / s (download) and 5.76 Mb / s (upload)
- Windows, Linux, Android operating systems
- Communication protocols TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
- SMS supports MT, MO, CB, Text, PDU
- Firmware Upgrade Supports firmware upgrade via USB port
- 1.8V / 3.0V SIM card
- Antenna connector 6x IPEX-4 connector 4x IPEX-4 connector
- Power supply 5V, 3A
- Module dimensions 42 x 30 x 2.3 mm
Kit contains
- SIM8202G-M2
- SIMXXXX-M2 4G / 5G HAT
- 4 x 5G / 4G / 3G / GNSS external antenna
- 5V 3A MicroUSB power supply
- Double USB3.0 cable
- USB3.0 adapter
- USB2.0 adapter
- Black acrylic housing panel
- 2 × 20-pin header
- 4010 cooling fan
- Screw package
- Antenna base
- Screwdriver
584354
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
zł220.99
24h
Available quantity: 104
Available
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
zł264.91
24h
Available quantity: 128
Available
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 8 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
zł358.90
24h
Available quantity: 152
Available
NVIDIA development kit with the ARM Cortex A57 1.43GHz CPU system and the Maxwell graphics system consisting of 128 cores supporting CUDA technology. The module has 4GB DDR4 RAM, 16GB eMMC and an attached 32GB USB memory and 64GB microSD card. Waveshare JETSON-NANO-DEV-KIT
zł1,060.86
24h
Available quantity: 3
Available
Other products in the same category (16)
HAT designed for Raspberry Pi minicomputers with a two-channel RS232 converter. Communication is realized via the SPI interface. The overlay uses a standard 40-pin Raspberry Pi connector. Waveshare 2-CH RS232 HAT
zł77.86
4 weeks
No product available!
SIMCom 4G SIM7600G-H module kit designed to work with Raspberry Pi minicomputer. It supports 4G, 3G, 2G networks and GNSS positioning. Waveshare SIM7600G-H 4G HAT (B)
zł348.52
4 weeks
No product available!
Expansion board with LoRa E22-900T22S module for Raspberry Pi. It supports the LoRaWAN protocol and allows communication in the 868 MHz frequency band. SB Components 22571
zł153.57
24h
Available quantity: 2
Available
Highly cost-effective multimedia hat compatible with the Raspberry Pi Model B+/2B/3B. Decodes and separates voices from HDMI signal, completely solving the poor quality problem with Raspberry Pi integrated sound card. DFR0450
zł238.80
4 weeks
No product available!
4 Port USB HUB HAT for Raspberry Pi B+, Raspberry Pi 2 B, Rapsberry Pi 3 B; USB to UART Onboard. Waveshare USB HUB HAT
zł35.36
24h
Available quantity: 8
Available
Set with SIMCom 5G SIM8202G-M2 module designed to work with the Raspberry Pi minicomputer. It supports 5G SA or NSA networks and is backwards compatible with 4G and 3G networks. Waveshare SIM8202G-M2 5G HAT (B)
zł1,672.58
4 weeks
No product available!
A 3-port HUB module with a USB 2.0 interface with an RJ45 connector, designed to work with the Raspberry Pi minicomputer. Waveshare ETH/USB HUB HAT (B)
zł48.45
24h
Available quantity: 9
Available
Expansion board with LoRa E22-900T22S module for Raspberry Pi. Allows communication in the 868 MHz frequency band. Waveshare SX1262 868M LoRa HAT
zł137.23
24h
Available quantity: 2
Available
Expansion board with LoRaWAN SX1302 and GNSS L76B dedicated to the Raspberry Pi. The kit includes the 868M antenna, GPS and cables. Waveshare SX1302 868M LoRaWAN Gateway HAT
zł508.58
24h
Available quantity: 4
Available
Expansion board with LoRa Node SX1262 module dedicated for Raspberry Pi. It supports the LoRaWAN protocol and allows communication in the 868 MHz frequency band. Waveshare SX1262 868/915M LoRaWAN HAT
zł69.22
24h
Available quantity: 4
Available
Waveshare PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5 (US) – PCIe adapter for 4 NVMe drives...
PCIE TO 4-CH NVME Board (B) (US) is a reliable solution for expanding the Raspberry Pi 5 with high-speed data storage using four NVMe drives. Ideal for server applications, workstations, AI projects, and home NAS setups, it offers high performance and comes with a US plug power supply included.
zł148.99
6 weeks
No product available!
The KAmodRPi UART RS485 ISO is an advanced RS485 bus transceiver for the Raspberry Pi, featuring automatic transmission direction control, galvanic isolation, surge protection, and support for up to 128 modules at a transmission speed of up to 500 kbps, powered by 5V with low power consumption
zł67.70
24h
Available quantity: 172
Available

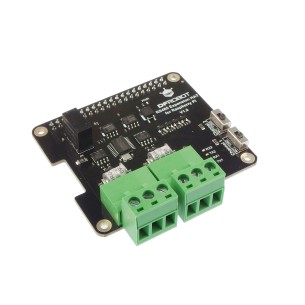

A two-channel RS485 expansion module designed for the Raspberry Pi. It uses the TP75176E transceiver and CH432T chip and offers a stable connection between devices. DFRobot DFR0824
