zł180.88 tax excl.
HAT module for Raspberry Pi that supports global 4G LTE Cat-1 bands. It has a standard 40-pin GPIO connector, supports multiple communication protocols, including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL. It also offers GNSS positioning functions such as GPS, GLONASS, Galileo, and BeiDou. Waveshare SIM7670G LTE Cat-1/GNSS HAT
The SIM7670G LTE Cat-1/GNSS HAT module for Raspberry Pi is a communication module that supports global LTE 4G Cat-1 bands and offers GNSS (Global Navigation Satellite System) functionality. With support for both LTE-TDD and LTE-FDD technologies, the module enables wireless communication with a maximum download speed of 10 Mbps and an upload speed of up to 5 Mbps. It is compatible with Windows and Linux operating systems and supports numerous network protocols, making it ideal for IoT applications such as remote data processing, device monitoring, industrial routers, or remote diagnostics.
1. SIM7670G module | 8. GNSS IPEX 1 connector |
2. 40-PIN GPIO header for Raspberry Pi | 9. LED indicators |
3. DIP switches | 10. LTE IPEX 1 connector |
4. USB Type-A connector | 11. Nano SIM card slot |
5. 3 extended USB ports | 12. 4G UART pads compatible with Raspberry Pi 5 UART connector |
6. PWRKEY | 13. Test pads for connection to other boards |
7. USB Type-C connector | 14. FE1.1S USB 2.0 HUB |
The module features a standard 40-pin GPIO header that is compatible with the entire Raspberry Pi series. It supports multiple communication protocols, including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL. Additionally, it offers GNSS positioning functions such as GPS, GLONASS, Galileo, and BeiDou. It also includes 3 USB 2.0 Type-A ports, which can be used to extend the functionality of the Raspberry Pi or other host devices. The module has a SIM card slot (1.8V/3V) and provides access to UART and USB pins, making it easy to connect to other devices. 6 LED indicators allow for easy monitoring of the module's status and USB connections.
The SIM7670G module supports dial-up on both Windows and Linux systems, enabling connections to computers or industrial devices via a USB interface, allowing access to LTE Cat-1 networks. With its GNSS functionality, the module provides precise positioning, making it ideal for applications such as mobile device tracking, animal tracking, or vehicle monitoring.
The module is also compatible with the Waveshare.cloud platform, offering support for quick IoT solution deployment and real-time data visualization. Typical applications include smart gardens, server performance monitoring, and mobile GPS positioning. This versatile module provides broad functionality and global usability, making it an ideal solution for many professional and industrial projects based on Raspberry Pi.
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
A mini-computer in version 5 with 4GB of RAM, equipped with two microHDMI ports, 2 USB 3.0 ports, and 2 USB 2.0 ports, as well as a USB-C power connector. The processor is a quad-core Broadcom BCM2712 clocked at 2.4GHz. The board also features dual-band WiFi, Bluetooth 5.0 with BLE support, PCI Express 2.0 interface, and a real-time clock. Raspberry Pi SC1111
No product available!
A mini-computer in version 5 with 2GB of RAM, equipped with two microHDMI ports, 2 USB 3.0 ports, and 2 USB 2.0 ports, as well as a USB-C power connector. The processor is a quad-core Broadcom BCM2712 clocked at 2.4GHz. The board also features dual-band WiFi, Bluetooth 5.0 with BLE support, PCI Express 2.0 interface, and a real-time clock. Raspberry Pi SC1111
HAT module designed for the Raspberry Pi minicomputer. It allows you to add an RS485 interface and a CAN bus to the project, allowing for wired communication of many devices over long distances. SB Components 21444
RS485 CAN HAT is an extension designed for the Raspberry Pi mini-computer in the form of a HAT overlay. Adds RS485 and CAN interfaces for the Raspberry Pi plate. Interface signals are derived as screw and goldpin connectors. RS485 CAN HAT
PCIE TO 4-CH NVME Board (B) (US) is a reliable solution for expanding the Raspberry Pi 5 with high-speed data storage using four NVMe drives. Ideal for server applications, workstations, AI projects, and home NAS setups, it offers high performance and comes with a US plug power supply included.
No product available!
Modern SSDs are most commonly equipped with a high-speed NVMe interface, implemented through an NGFF connector with an M-key, known as M.2 M-key. The KAmod USB-PCIE-M2 adapter allows you to connect an M.2 M-key SSD to a computer via a USB port.

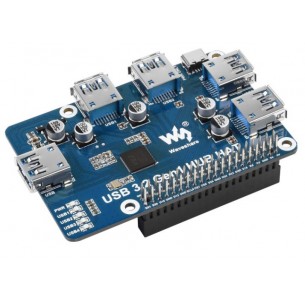

The 4-port HUB module with USB 3.2 interface is designed to work with the Raspberry Pi minicomputer. Waveshare USB 3.2 Gen1 HUB HAT
