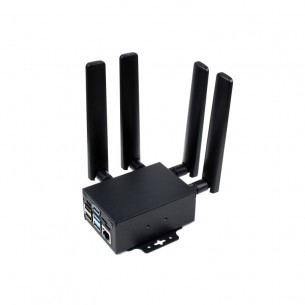

SIM8202G-M2 5G HAT (B) - kit with 5G module SIM8202G-M2 for Raspberry Pi + case
ID: 1181863
zł1,610.71
Tax included
zł1,309.52 tax excl.
Set with SIMCom 5G SIM8202G-M2 module designed to work with the Raspberry Pi minicomputer. It supports 5G SA or NSA networks and is backward compatible with 4G and 3G networks. Waveshare SIM8202G-M2 5G HAT (B) (with case)
Description
Set with SIMCom 5G SIM8202G-M2 module designed to work with the Raspberry Pi minicomputer. It is based on the Qualcomm Snapdragon X55 chip, which guarantees multi-band frequency support, thanks to which the device can be used in countries and regions such as China, Japan, South Korea, Europe or the Middle East. It supports 5G SA or NSA networks and is backward compatible with 4G and 3G networks. SIM8202G-M2 supports positioning within GPS, GLONASS, Beidou, Galileo and QZSS systems, Dial-up function and communication with devices in the cloud. It is supported by AT commands.
The base board is equipped with an M2 connector, thanks to which it enables connection with various 4G or 5G communication modules with an M2 connector. The board also has a USB 3.1 port, audio jack, decoder and two SIM card slots. The set is connected to the Raspberry Pi using a standard 40-pin connector.
| 1. 40-pin GPIO connector | 7. Audio connector |
| 2. Switch | 8. Antenna connector |
| 3. M.2 slot | 9. Reset |
| 4. SIM slot | 10. Power supply switch |
| 5. USB 3.1 | 11. Fun |
| 6. USB type C | 12. LED indicator |
The set includes a housing, antennas and a cooling fan. The housing has universal mounts that allow the device to be mounted on a wall or DIN rail. Full documentation is available on the product Wiki page.
Features
- SIMCom 5G SIM8202G-M2 modem with Qualcomm SDX55 chip
- Frequency band:
- 5G NR Sub-6G N1 / N3 / N28 / N40 / N41 / N77 / N78 / N79
- LTE-FDD B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B29 / B30 / B66 / B71
- LTE-TDD B34 / B38 / B39 / B40 / B41 / B42 / B48
- WCDMA B1 / B3 / B5 / B8
- GNSS GPS, GLONASS, Beidou, Galileo and QZSS
- Data transfer rate:
- Sub-6G 2.4 Gb / s (Download) and 500 Mb / s (Upload)
- LTE 1 Gb / s (download) and 200 Mb / s (upload)
- HSPA 42 Mb / s (download) and 5.76 Mb / s (upload)
- Windows, Linux, Android operating systems
- Communication protocols TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0
- Dial Up: RNDIS, NDIS, PPP, MBIM
- SMS supports MT, MO, CB, Text, PDU
- Firmware update via USB port
- 1.8V / 2.95V SIM card
- Antenna connector: 4x IPEX-4 connector
- 5V power supply
- Module dimensions 85 x 56 mm
- Housing dimensions: 91.5 x 64.5 x 38.5 mm
Kit contains
- Case
- SIM8202G-M2
- M.2 TO 4G / 5G HAT HAT
- 4 x external antenna
- 4 x IPEX adapter
- Dual USB3.0 cable
- USB3.0 adapter
- USB2.0 adapter
- 2x20-pin connector
- GPS antenna
- Screw package
- 4 x SMA protective caps
1181863
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 1GB RAM LPDDR4, Broadcom VideoCore VI layout.
zł176.00
24h
Available quantity: 59
Available
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
zł220.99
24h
Available quantity: 88
Available
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
zł264.91
24h
Available quantity: 124
Available
The set with the SIMCom 5G module SIM8202G-M2 designed to work with the Raspberry Pi minicomputer. It supports 5G SA or NSA networks and is backwards compatible with 4G and 3G networks. Waveshare SIM8202G-M2 5G HAT (EU)
zł1,487.92
Delivery date unknown
No product available!
SIMCom 5G SIM8262E-M2 module with Qualcomm Snapdragon X62 chip. It supports 5G SA or NSA networks and is backward compatible with 4G and 3G networks. Waveshare SIM8262E-M2
zł1,257.15
Delivery date unknown
No product available!
Other products in the same category (16)
Highly cost-effective multimedia hat compatible with the Raspberry Pi Model B+/2B/3B. Decodes and separates voices from HDMI signal, completely solving the poor quality problem with Raspberry Pi integrated sound card. DFR0450
zł238.80
4 weeks
No product available!

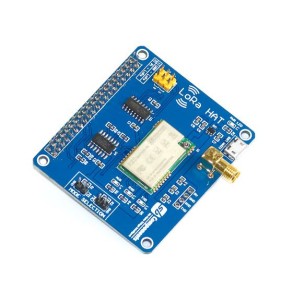

Expansion board with LoRa E22-400T22S module for Raspberry Pi. It supports the LoRaWAN protocol and allows communication in the 433 MHz frequency band. Waveshare SX1268 433M LoRa HAT
zł95.96
4 weeks
No product available!
KAmodRPi-GPRS-GPS is an overlay for Raspberry Pi 4 / 3B + / 3B / 2B / B + computers, which allows you to enrich the system with the ability to send data via GPRS, SMS transmission or work as a module for Bluetooth communication. This extension also offers the ability to receive satellite data from location systems - GPS and GLONASS.
zł229.00
24h
Available quantity: 47
Available
Waveshare PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5 (US) – PCIe adapter for 4 NVMe drives...
PCIE TO 4-CH NVME Board (B) (US) is a reliable solution for expanding the Raspberry Pi 5 with high-speed data storage using four NVMe drives. Ideal for server applications, workstations, AI projects, and home NAS setups, it offers high performance and comes with a US plug power supply included.
zł148.99
6 weeks
No product available!
Set with SIMCom 5G SIM8262E-M2 module designed to work with the Raspberry Pi minicomputer. It supports 5G SA or NSA networks and is backward compatible with 4G and 3G networks. Waveshare SIM8262E-M2 5G HAT (with case)
zł1,253.70
4 weeks
No product available!
NFC reader module dedicated to the Raspberry Pi. It is based on the PN532 operating in the 13.56 MHz frequency range. Waveshare PN532 NFC HAT
zł96.42
4 weeks
No product available!
A 3-port HUB module with a USB 2.0 interface with an RJ45 connector, designed to work with the Raspberry Pi minicomputer. Waveshare ETH/USB HUB HAT (B)
zł48.45
24h
Available quantity: 10
Available
Expansion board with LoRa E22-400T22S module for Raspberry Pi. It supports the LoRaWAN protocol and allows communication in the 433 MHz frequency band. SB Components 22564
zł167.82
Delivery date unknown
No product available!
Module dedicated to Raspberry Pi, which supports various wireless communication modes, such as LTE-TDD, LTE-FDD, GSM, GPRS and EDGE. With download speeds of up to 10Mbps and upload speeds of up to 5Mbps, this module is perfect for IoT applications such as remote information processing, device monitoring, POS terminals, industrial routers, remote diagnostics and satellite positioning. Waveshare A7670E Cat-1/GNSS HAT
zł128.22
24h
Available quantity: 2
Available

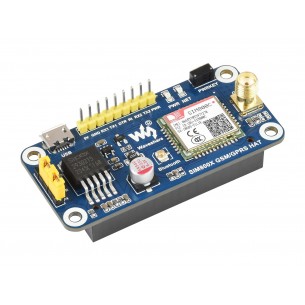

Communication module with the SIM800C system designed for Raspberry Pi minicomputers. Adds support for GSM/GPRS networks. Waveshare SIM800C GSM/GPRS HAT
zł88.77
24h
Available quantity: 5
Available
HAT designed for Raspberry Pi minicomputers with a two-channel RS232 converter. Communication is realized via the SPI interface. The overlay uses a standard 40-pin Raspberry Pi connector. Waveshare 2-CH RS232 HAT
zł77.86
4 weeks
No product available!
PCIe to Ethernet Adapter for Raspberry Pi 5. Extends the functionality of the Raspberry Pi 5 by adding a Gigabit Ethernet port with the high-performance RTL8111H controller. The adapter connects to the Raspberry Pi 5 using a 16-pin PCIe cable. Waveshare PCIe TO Gigabit ETH Board (C)
zł32.41
4 weeks
No product available!
Modern SSDs are most commonly equipped with a high-speed NVMe interface, implemented through an NGFF connector with an M-key, known as M.2 M-key. The KAmod USB-PCIE-M2 adapter allows you to connect an M.2 M-key SSD to a computer via a USB port.
zł78.15
24h
Available quantity: 147
Available
HAT module designed for Raspberry Pi minicomputer. Powala adds two RS485 interfaces and one CAN bus to the project. Waveshare RS485 CAN HAT (B)
zł109.90
24h
Available quantity: 23
Available

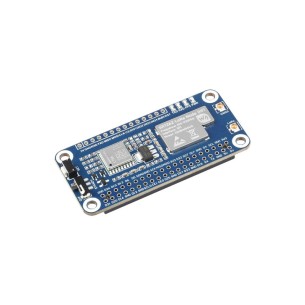

Expansion board with LoRa Node SX1262 module and GNSS L76K dedicated for Raspberry Pi. It supports the LoRaWAN protocol and allows communication in the 433 MHz frequency band and enables positioning within the GPS, GLONASS, BDS and QZSS systems. Waveshare SX1262 433/470M LoRaWAN/GNSS HAT
