Grove Air Quality Sensor - gas, pressure, temperature and humidity sensor module BME688
ID: 1182555
5906623414925
zł172.86
Tax included
zł140.54 tax excl.
BME688 integrated gas, pressure, temperature and humidity sensor module housed in a single MEMS package. It features a Grove connector and communicates via an I2C or SPI interface. Seeed Studio 114992989
Description
The module with integrated BME688 gas, pressure, temperature and humidity sensors housed in a single MEMS package. The chip was developed specifically for mobile applications and wearables, where size and low power consumption are key requirements.
The BME688 sensor is backward compatible with the BME680. It has the added feature of scanning gas in low power consumption mode (3.9 mA in standard scanning mode). It can detect a wide range of volatile organic compounds (VOCs), volatile sulfur compounds (VSCs) and other gases such as carbon monoxide and hydrogen. In the standard configuration, the presence of VSCs is used as an indicator of bacterial growth, for example. The gas scanner can be customized in terms of sensitivity, selectivity, data rate and power consumption. In addition, thanks to built-in artificial intelligence elements, it can be trained to detect different gas mixtures and their presence using Bosch AI Studio.
The module is powered by voltages starting at 3.3 V, and communicates via an I2C (Grove connector) or SPI interface. It can be used for innovative, custom applications such as detecting food spoilage or fires by measuring current gases and tracking changes in temperature and humidity. The artificial intelligence capabilities of the sensors and the new BME AI-Studio software tool allow you to quickly develop custom solutions directly for specific cases.
Features
- Temperature measurement range: -40 to 85℃ (accuracy ±1.0°C, resolution 0.01°C)
- Humidity measurement range: 0 to 100% (accuracy ±3%r.H., resolution 0.008%r.H.)
- Atmospheric pressure measurement range: 300 to 1100 hPa (accuracy ±0.6 hPa, resolution 0.18 Pa)
- Measurement of air quality, volatile organic compounds (VOC), volatile sulfur compounds (VSC), carbon monoxide and hydrogen
- Interface: I2C (up to 3.4 MHz) or SPI (up to 10 MHz)
- I2C address 0x76 (default), 0x77
- Supply voltage: 3,3 V/5 V
- Dimensions: 24 x 20 x 9.9 mm
Kit contains
- Grove Air Quality Sensor
- Grove cable
1182555
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- BME688
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- VOC
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
Board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface
zł55.78
Delivery date unknown
No product available!
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
zł108.42
24h
Available quantity: 199
Available
Base Shield V2 is an extension for tiles with an Arduino shield connector, it has a Grove connector, which can be connected to Grove-compatible modules / sensors. Seeedstudio 103030000
zł24.40
24h
Available quantity: 25
Available
Base plate designed for NodeMCU (ESP8266 WIFI). The module is an expansion board that allows you to plug the NodeMCU into the slot and use the Grove sensor ports. Seeed Studio 105020008
zł57.18
24h
Available quantity: 4
Available
Qwiic to Grove adapter cable, 100 mm long. Enables interoperability between the SparkFun Qwiic Connect system and Seeed Studio I2C-based Grove boards. SparkFun PRT-15109
zł10.84
Delivery date unknown
No product available!
Other products in the same category (16)
Air quality sensor module based on the ENS160 system. It communicates via the I2C or SPI interface. DFRobot SEN0515
zł77.42
24h
Available quantity: 1
Available
Digital gas sensor solution that senses a wide range of Total Volatile Organic Compounds (TVOCs), including equivalent carbon dioxide (eCO2) and metal oxide (MOX) levels, intended for indoor air quality monitoring in personal devices such as watches and phones, but we’ve put it on a breakout board so you can use it as a regular I2C device. SEN-14193
zł193.38
24h
Available quantity: 2
Available
Laser sensor of air pollution with particles PM1,0, PM2.5 and PM10. It allows for precise analysis of the amount of pollutants in the environment, has small dimensions and a built-in silent transfer fan. Data is output to the UART interface. PMS3003
zł95.25
24h
Available quantity: 40
Available
ENS160 gas sensor module to measure the concentration of carbon dioxide (eCO2) and volatile organic compounds (TVOC) in the air. It communicates via an I2C or SPI interface. SparkFun SEN-20844
zł119.84
24h
Available quantity: 3
Available
A sensor used to detect pollutants in the air by measuring gases such as hydrogen, ethanol and carbon monoxide. It is used in various areas, such as the food industry, chemical industry, air quality control in laboratories and environmental monitoring. Figaro TGS2600
zł27.34
24h
Available quantity: 8
Available
Module with a BME688 sensor for measuring gas concentration, pressure, temperature and humidity. I2C or SPI communication. SparkFun SEN-19096
zł196.21
24h
Available quantity: 3
Available
Total suspended particulate (TSP) sensor that allows you to measure the particle concentration from 1 to 100 μm. SDS198
zł435.31
24h
Available quantity: 1
Available
The module allows the detection of volatile organic compounds (VOC) in the air, based on Winsen\'s WSP2110 system. Allows for detection in the air; formaldehyde (HCHO), methane, benzene, toluene, alcohol, etc. The sensor output is an analog signal. Seeed studio 101020001
zł79.32
24h
Available quantity: 4
Available
Sharp GP2Y1010AU0F dust and particle concentration sensors. It is supplied with the voltage from 5 to 7V. Has an analog output. DFRobot SEN0144
zł61.46
24h
Available quantity: 4
Available
The SCD-40 CO2, temperature and humidity sensor module provides high accuracy readings. It is equipped with a Qwiic connector and communicates via an I2C interface. SparkFun SEN-22395
zł357.76
24h
Available quantity: 2
Available
The PMSA003 air quality sensor module is designed for the Raspberry Pi. It allows you to analyze the amount of pollutants based on the concentration of PM1.0, PM2.5 and PM10 particles. SB Components 20768
zł247.80
24h
Available quantity: 1
Available
Air quality sensor module based on the SGP40 system. It uses CMOSens technology by Sensirion and provides information on the concentration of volatile organic compounds (VOC). Adafruit 4829
zł79.42
24h
Available quantity: 3
Available
BME688 integrated gas, pressure, temperature and humidity sensor module in a single MEMS housing. It is equipped with an I2C and SPI interface. It has built-in AI functions. Waveshare BME688 Environmental Sensor
zł102.93
24h
Available quantity: 2
Available
The SEN55 sensor module from Sensirion, which combines a sensor allowing the measurement of particulate matter, volatile organic compounds, NOx, humidity and temperature in one housing. SparkFun SEN-23715
zł230.08
3 weeks
No product available!

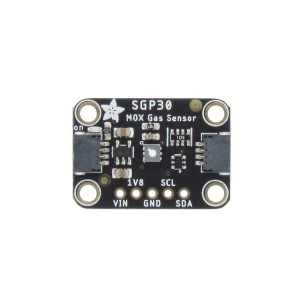

Module with SGP30 gas sensor. The sensor communicates via the I2C interface. SGP30 system contains several elements reacting to various metal oxides, which allows for more accurate determination of air quality. Adafruit 3709
