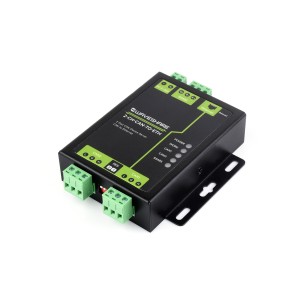

An extensive CAN to Ethernet converter adapted to difficult industrial conditions. It supports two CAN interfaces, one Ethernet interface and a TCP/IP protocol stack. It also has one RS485 serial port. USR-CANET200

24h
Available
Available quantity: 10
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

An extensive CAN to Ethernet converter adapted to difficult industrial conditions. It supports two CAN interfaces, one Ethernet interface and a TCP/IP protocol stack. It also has one RS485 serial port. With a 10/100Mbps Ethernet interface, the module offers fast data transmission while supporting Auto-MDI/MDIX, which increases installation flexibility. The ID CAN filtering function ensures safe and personalized use of the module, and the ability to support two sockets in one port increases its functionality. The converter allows flexible adjustment of the CAN transmission speed in the range from 10 kbps to 1 Mbps, while supporting BASIC and LOOPBACK operating modes. IP and DHCP configuration make using the device easy, and the function of searching the device on the network via UDP broadcast transmission adds convenience.

Additional features such as restoring default settings, LED indicators and electromagnetic isolation make using the module even more intuitive. The module also enables firmware updates via the network, modification of the web server port, as well as support for the Keep-Alive function and switching between CAN and RS485 interfaces. The converter is a comprehensive solution for industrial applications that will meet even the most demanding operating conditions.

Features

  • Ethernet interface: RJ45, 10/100Mbps, Auto-MDI/MDIX support
  • Electromagnetic isolation 1.5KV
  • RS485 serial port
  • Serial port baud rate: 600 to 115.2K (bps)
  • CAN baud rate: 10K to 1M (bps)
  • CAN operating mode: basic, loopback
  • CAN protection: power isolation, signal isolation
  • Network protocol: IPV4, TCP/UDP
  • Static IP address, DHCP
  • Configuration method: web server, serial/network AT command
  • Supports up to four TCP client connections, serial server only supports one Client connection
  • Network cache: 16 KB
  • CAN cache: two hundred data packets
  • Serial cache: 2 kB
  • Power protection
  • Supply voltage: 5 to 36 V
  • Current consumption: 26 mA at 36 V, 56 mA at 12 V, 124 mA at 5 V
  • Operating temperature: -40 to 85℃
  • Storage temperature: -40 to 105℃
  • Dimensions: 96.5 x 94 x 25 mm
