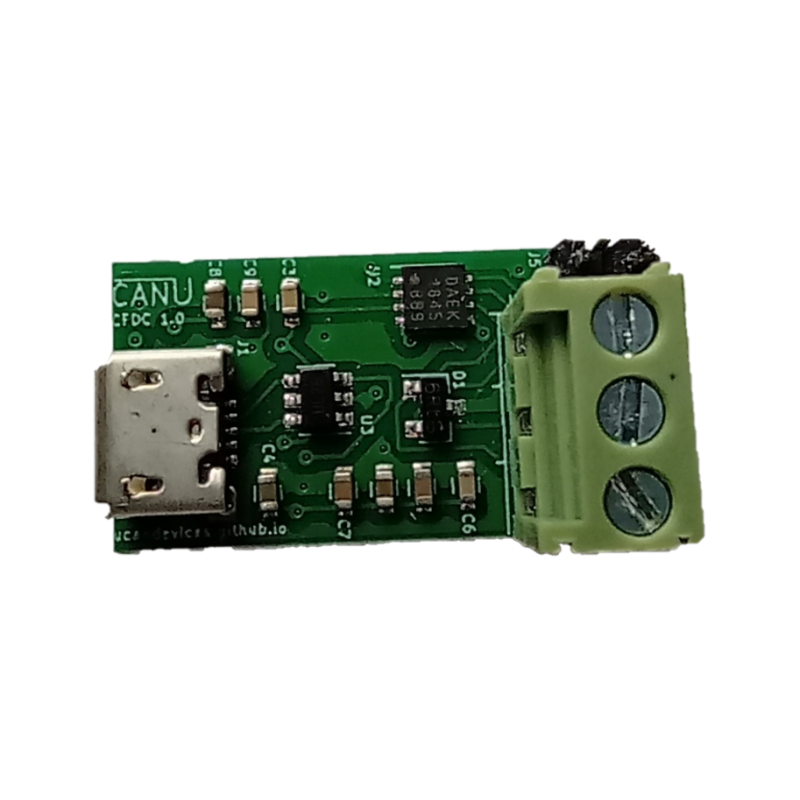

The USB-FDCAN converter is a device that enables communication between the computer and the CAN (Controller Area Network). It supports the CAN FD standard and is equipped with a Microchip MCP2542FD transceiver. FDCAN USB converter

24h
Available
Available quantity: 9

Description

The USB-FDCAN converter is a device that enables communication between the computer and the CAN (Controller Area Network). It supports the CAN FD standard, which means it can transfer data at higher speeds than traditional CAN networks. It is equipped with a Microchip MCP2542FD FD CAN transceiver, which is responsible for the physical layer of the CAN network and provides the necessary connection between the device and the network. The converter can support baud rates up to 8 Mbps and provides hardware frame filters that allow selective frame reception, which is useful for large CAN networks. The device can run on Windows, however, a Windows Subsystem for Linux (WSL) environment may be required for full functionality.

Features

  • Support Flexible Data Rate CAN Version 1.0 (CAN FD), Microchip MCP2542FD FD CAN Transceiver
  • Support for CAN version 2.0 (ISO 11898-1:2015)
  • Receiving and sending normal and extended frames, brs frames
  • CAN transmission speed up to 8 Mbps
  • Internal/external loopback mode, listening mode
  • Hardware frame filtering
  • Socket-can via gs_usb driver
  • Works under Windows (WSL required)
  • Python support
  • Manually configured terminating resistors
  • DFU Loader
  • Dimensions: 26 x 14mm
