Qwiic Thing Plus - development kit with ATSAMD51J20 microcontroller
ID: 581511
5906623420537
zł149.05
Tax included
zł121.18 tax excl.
Development kit with ATSAMD51J20 microcontroller with ARM Cortex M4F core. It is clocked at 120 MHz, has 1 MB of Flash and 256 KB of SRAM. There are 6 SERCOM interfaces on the board. SparkFun DEV-14713
Description
Development kit with ATSAMD51J20 microcontroller with ARM Cortex M4F core. The chip can be clocked at 120 MHz, has a built-in 1 MB Flash memory and 256 KB SRAM. There are 6 SERCOM interfaces on the board. In addition, the module has 4 Mb of additional Flash memory, a JST-PH connector and a LiPo battery charger, thanks to which the set can become a portable device.
The microcontroller has a UF2 bootloader and is programmed via a microUSB connector. The kit has a Qwiic connector and a 3.3 V stabilizer. It can be programmed using the Arduino IDE. The guide and examples of use are available on the product page.
Features
- ATSAMD51J20 microcontroller
- 32-bit ARM Cortex-M4F MCU
- Up to 120MHz CPU speed
- 1MB flash memory
- 256KB SRAM
- Up to 6 SERCOM interfaces
- UF2 bootloader
- Qwiic connector
- USB interface for programming and power
- 600mA 3.3V regulator
- 4Mb (external) flash memory
- LiPo charger
- Feather pin layout
581511
Data sheet
- Microcontroller
- ATSAMD51
- Core
- Cortex-M4
- Frequency
- 120MHz
- Flash memory
- 1024kB
- RAM
- 256kB
- EEPROM memory
- none
- Number of digital pins
- 15
- Number of PWM channels
- 15
- Ilość wejść analogowych
- 6
- ADC
- 1x 12bit
- DAC
- 1x 10bit
- CAN
- none
- USB
- 1
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- GSM/GPRS module
- No
- Logic voltage
- 3,3 V
- MicroSD slot
- No
- Supply voltage min
- 2,5 V
- Supply voltages max
- 6 V
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
No product available!
Available
Cable with USB typ A and microUSB typ B connectors, cable length 1.8 m. LANBERG CA-USBM-10CC-0018-W
zł4.06
24h
Available quantity: 12
Available
Flexible 4-core cable, 200 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17258
zł11.22
24h
Available quantity: 3
Available
Other products in the same category (16)
Base board compatible with Arduino. It was equipped with an Atmega 328P microcontroller. It has 14 I/O lines (including 6 PWM channels) and 6 analog inputs. SparkFun DEV-14525
zł128.77
24h
Available quantity: 1
Available
No product available!
Pro Micro is similar to Pro Mini Arduino compatible board, main difference is that Pro Micro uses ATmega32u4 with builtin USB connectivity. Sparkfun DEV – 12587
zł132.18
3 weeks
No product available!

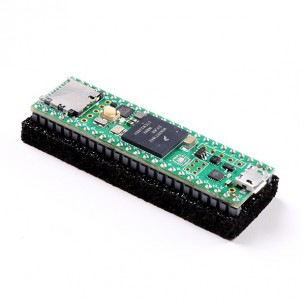

Development board with NXP iMXRT1062 ARM Cortex-M7 microcontroller. Equipped with a microSD slot. Version without Ethernet communication. PJRC TEENSY41-NE-PINS
zł195.93
4 weeks
No product available!
Evaluation kit with Bluetooth 5.0 Sparkfun Artemis module. Equipped with a microphone, kmaers and accelerometer. SparkFun DEV-16828
zł153.80
24h
Available quantity: 1
Available
Evaluation kit with Sparkfun Artemis Bluetooth 5.0 module designed on the basis of the Arduino Nano kit. It has a USB C. The board also has a USB-UART converter, a microphone, Lipo battery charging and a JTAG debugging connector. Artemis has support in the Arduino IDE. SparkFun DEV-15443
zł102.51
24h
Available quantity: 4
Available
A small module, matching the breadboard, containing a 32-bit microcontroller with ARM Cortex M7 core. PJRC TEENSY40
zł148.26
Delivery date unknown
No product available!

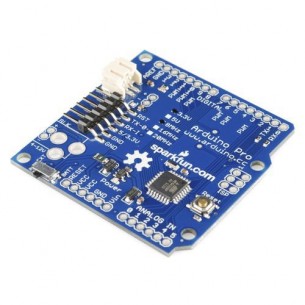

This board combines the simplicity of the UNO’s Optiboot bootloader (which is used in the Pro series), the stability of the FTDI (which we all missed after the Duemilanove was discontinued) and the R3 shield compatibility of the latest Arduino UNO R3. SparkFun DEV-13975
zł95.23
24h
Available quantity: 1
Available
Development board equipped with ATSAMD21G18 microcontroller. It has 30 I/O lines, including SERCOM interfaces and 14 analog inputs. Compatible with Arduino. SparkFun DEV-13672
zł164.38
24h
Available quantity: 2
Available

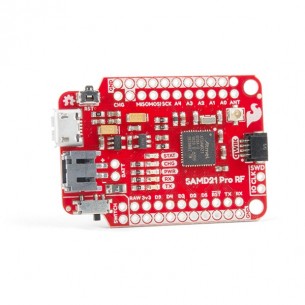

Development kit with SAMD21G18A microcontroller with ARM Cortex M0+ core and LoRa RFM95W radio communication module. SparkFun WRL-15836
