SparkFun Weather Shield
ID: 559794
Easy to use Arduino shield that grants you access to barometric pressure, relative humidity, luminosity, and temperature. There are also connections to optional sensors such as wind speed/direction, rain gauge, and GPS for location and super accurate timing. DEV-12081
Description
The Weather Shield is an easy to use Arduino shield that grants you access to barometric pressure, relative humidity, luminosity and temperature. There are also connections on this shield to optional sensors such as wind speed, direction, rain gauge and GPS for location and super accurate timing.
These Weather Shields utilize the HTU21D humidity, MPL3115A2 barometric pressure, and ALS-PT19 light sensors and relies on the HTU21D and MPL3115A2 Arduino libraries. Each shield comes with two unpopulated RJ11 connector spaces (for optional hook up of rain and wind sensors) and a 6-pin GPS connector (for optional hook up of a GP635T GPS module). Finally, each Weather Shield can operate from 3.3V up to 16V and has built in voltage regulators and signal translators.
Attention! The Weather Shield comes as a stand-alone board. Headers, connectors, and additional sensors will need to be purchased separately, check the related items or wish list below!
This shield was designed for the SparkFun Redboard and Arduino Uno and will not work with other boards (like the Arduino Yun, for example) without modification.
This shield was designed for the SparkFun Redboard and Arduino Uno and will not work with other boards (like the Arduino Yun, for example) without modification.
Features
- Uses the HTU21D humidity sensor, MPL3115A2 barometric pressure sensor, and ALS-PT19 light sensor.
- Has connector for the GP-635T compact GPS module
- Has optional connectors for the SparkFun weather meters
- Weather shield can operate from 3V to 10V and has built in voltage regulators and signal translators
- Typical humidity accuracy of ±2%
- Typical pressure accuracy of ±50Pa
- Typical temperature accuracy of ±0.3C
Suggested reading:
- I2C Protocol
- Installing an Arduino library
- How to install Arduino shield headers
- What are pull-up resistors?
- HTU21D Humidity Sensor Hookup Guide
- MPL3115A2 Barometric Sensor Hookup Guide
559794
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
Other products in the same category (16)
No product available!
Andrzej Chochowski
Delivery date unknown
No product available!
No product available!
No product available!
ARM Cortex-M3 MCU, 512 kB Flash, 96 kB SRAM, USB Device/Host/OTG, Ethernet, LCD, EMC, NXP, LQFP208, RoHS
Retired
No product available!

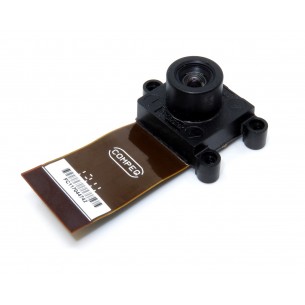

Camera with CMOS MT9M112 sensor with a resolution of 1280x1024 pixels. It communicates via the DVP parallel interface. ArduCAM U6080
