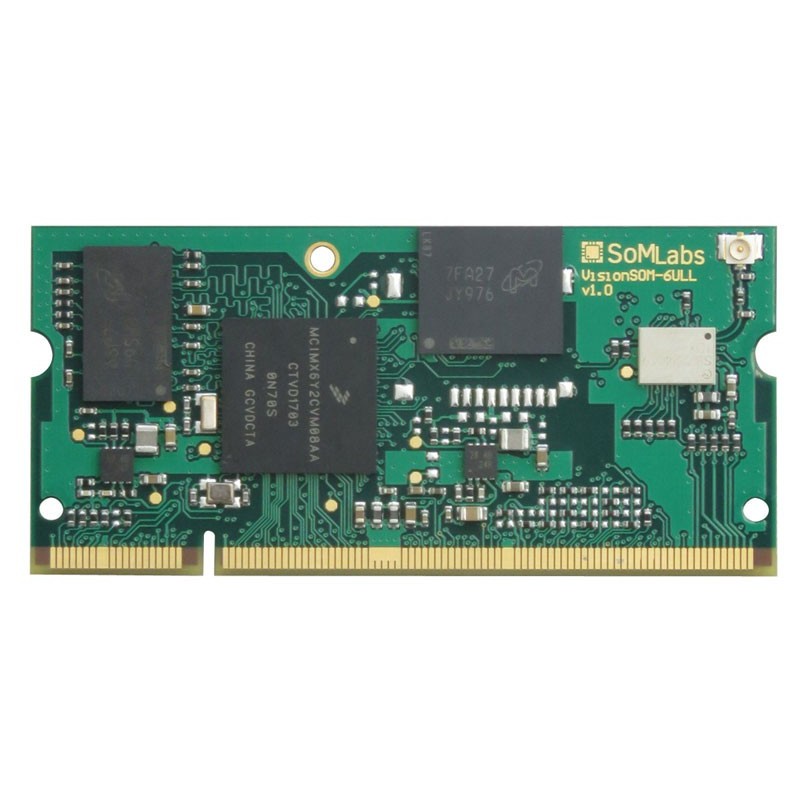

VisionSOM-6ULL - module with processor i.MX6 ULL, 512MB RAM, 4GB eMMC and WiFi/BT module
ID: 566286
zł291.24
Tax included
zł236.78 tax excl.
VisionSOM-6ULL is comprised of a small processor module with CPU bus accessibility and standard I/O functionality and is an ideal solution for embedded projects.
SLS16Y2_792C_512R_04GE_1WB_E
Description
VisionSOM-6ULL is comprised of a small processor module with CPU bus accessibility and standard I/O functionality and is an ideal solution for embedded projects.
VisionSOM-6ULL can often trim 8-12 months from design cycle and can be easy adapted to existing projects or can be used together with a dedicated carrier board. Customers who are looking for a complete solution can use a set comprised of System on Module (SoM) and Carrier Board (CB).
VisionSOM-6ULL requires a matching customer’s board or a carrier board to establish a complete system. Carrier Board together with VisionSOM-ULL is ready to use computer on board and is giving enormous flexibility in building projects.
Features
- CPU NXP i.MX6ULL Cortex-A7 32-bit processor (CPU clock up to 900MHz)
- Memory up to 512MB DDR3L
- GPU NXP PXP v2.0 2D graphics accelerator for LCD-TFT
- Display 24-bit RGB parallel interface
- Camera up to 24-bit CSI interface
- Storage uSD card or up to 32GB eMMC or up to 512MB NAND Flash
- Network Wi-Fi 802.11b/g/n, Bluetooth BLE 2 x Ethernet: 10/100 (MAC only)
- RTC built-in with external battery
- I2C up to 4 channels
- SPI up to 4 channels
- CAN up to 2 FlexCAN
- UART up to 8 channels
- USB 2 x USB2.0 OTG Host/Device
- Audio 3 x I2S/SAI, S/PDIF Tx/Rx, ESAI, Medium Quality audio System
- Security AES-128, ARM TrustZone, RNG
- Temperature Range -30 to +70°C (with WiFi/BLE module), -40 to +85°C
- Dimensions 67mm x 32mm x 4mm SODIMM200 module
566286
Data sheet
- Core
- Cortex-A7
- Frequency
- 792MHz
- RAM
- 512MB
- WiFi/BT module
- Yes
- Permanent memory
- eMMC 4GB
- Connector
- SODIMM200
- Processor
- i.MX 6ULL
- Operating temperature
- -25...+70°C
You might also like
Rod antenna 2.4G, gain 5dBi, connector type: IPEX/U.FL, RoHS
zł5.68
Delivery date unknown
No product available!
DDR2 SODIMM connector 200 pins; rated voltage: 1.8 V, height: 5.2 mm. For VisionSOM modules. TE Connectivity 1473005-4
zł27.50
24h
Available quantity: 43
Available
VisionSOM-6ULL is comprised of a small processor module with CPU bus accessibility and standard I/O functionality and is an ideal solution for embedded projects.
SLS16Y2_792C_512R_04GE_1WB_E
zł291.24
24h
Available quantity: 150
Available
VisionCB-6ULL-STD is a base plate for the VisionSOM-6UL (i.MX6 UL) and VisionSOM-6ULL (i.MX6 ULL) modules. The tile contains, among others Ethernet, USB connectors, connectors compatible with Arduino shields and Raspberry Pi hat, 5 buttons and 5 LEDs. VisionCB-6ULL-STD, SoMLabs
zł239.85
24h
Available quantity: 94
Available
Other products in the same category (16)

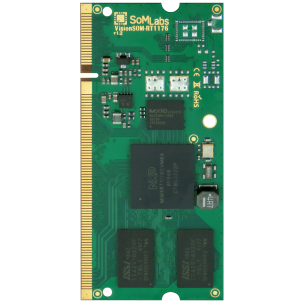

The SoM module in the SODIMM form factor, based on the NXP i.MX RT117x with a dual-core ARM Cortex-M7 processor (up to 800 MHz) and Cortex-M4 (up to 400 MHz). It offers low power consumption, real-time functionality and advanced security features, making it ideal for industrial applications, wireless systems and LCD-TFT displays. SoMLabs SLS14RT1176_800C_32R_16QSPI_0SF_I
