KAmodVL6180x - a module with distance, gesture and ALS sensor
ID: 559362
5906623432561
zł39.00
Tax included
zł31.71 tax excl.
KAmodVL6180X is a module that allows to measure light intensity (ALS), distance to the object and recognition of gesture. It has an embedded voltage regulator and voltage level translators on signal lines. Thanks to this can be used in systems with 2.8...5.5V power supply voltage.
Description
KAmodVL6180X is a module that allows to measure light intensity (ALS), distance to the object and recognition of gesture. It has an embedded voltage regulator and voltage level translators on signal lines. Thanks to this can be used in systems with 2.8...5.5V power supply voltage.
Features
- Chip VL6180X from STMicroelectronics
- Distance measurement possibility in range from 0 to 100mm
- Possibility of light intensity measurement in range from 1 to 100.000 Lux
- Power supply voltage: 2.8...5.5V
- Ocommunication interface: I2C
- Two GPIO lines
- Embedded voltage regulator and voltage level translators on signal lines
- Holes for pin connector soldering
- Mounting holes 3mm
- Module size (without connector): 24mm x 16mm x 3mm
Application example (KAmodVL6180X connected to KAmduino UNO board)
Kit content
- Assembled and launched module
- Pin connector (male straight and angled) for soldering
559362
Data sheet
- Interface
- I2C
- Type of sensor
- ToF
- Minimum distance
- 0 cm
- Maximum distance
- 10 cm
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like

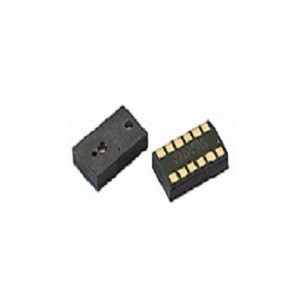

Proximity and ambient light sensing (ALS) module, LGA12, STM, RoHS
