zł35.87
AC axial fan 43W 171x151x51 mm
ID: 1193611
5906623488575
zł92.25
Tax included
zł75.00 tax excl.

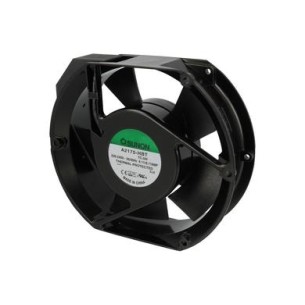

The SUNON 171x151x51 mm axial fan is a reliable and durable high-performance cooling device, ideal for industrial and automotive applications. Sunon A2175HBT.T.GN
Description
The SUNON fan with dimensions of 171x151x51 mm is an efficient cooling device intended for use in advanced electronic, automotive and industrial systems. Thanks to the rotational speed of 2600 rpm and the efficiency of 302 m³/h, it ensures effective cooling even in demanding working conditions. The fan is equipped with durable ball bearings that increase its durability and reliability. The housing made of aluminum and the thermoplastic rotor guarantee high resistance to mechanical damage and operational stability at temperatures from -10°C to 70°C. It meets stringent safety standards, including UL94V-0 and ECE R-118, making it the right choice for automotive and industrial applications.
Properties
- Dimensions: 171x151x51 mm
- Power consumption: 43 W
- Rated current: 0.25 A
- Efficiency: 302 m³/h (±10%)
- Noise level: 52 dBA
- Rotational speed: 2600 rpm
- Bearing type: ball
- Frequency: 50 Hz
- Insulation resistance: min. 500 MΩ
- Rotor material: thermoplastic
- Housing material: aluminum
- Motor: short-pole
- Operating temperature: -10°C...70°C
- Static pressure: 9.65 mm H2O
- Pins: 2.8x0.3 mm connectors
- Flammability class: UL94V-0, ECE R-118
1193611
Data sheet
- Voltage
- 230 V AC
- Power
- 43 W
- Length
- 171 mm
- Width
- 151 mm
- Height
- 51 mm
- Weight
- Other
- Noise level
- 52 dBA
- Air flow efficiency
- 302 m³/h
- Rated current
- 250 mA
- Fan type
- Axial
