RS232/485 TO WIFI POE ETH (B) - industrial RS232/485 - Ethernet/WiFi converter
ID: 1187925
5906623427918
zł162.93
Tax included
zł132.46 tax excl.
Industrial RS232/485 converter for Ethernet and WiFi. It is equipped with a PoE function and is mounted on a DIN rail. Supports Modbus and MQTT protocols. Waveshare RS232 RS485 TO POE ETH (B)
Description
Industrial RS232/485 to Ethernet and WiFi converter that ensures easy communication between the RS485 or RS232 interface and RJ45 Ethernet and wireless communication within the WiFi network. It combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, HTTPD client, RS485 and JSON. The module is equipped with an RS485 port and Ethernet port with POE function and uses screw terminals as power inputs. It supports numerous functions such as TCP server, TCP client, UDP mode and UDP multicast. Acting as a TCP client, it simultaneously supports server functionality. The housing structure is designed for rail mounting. Suitable for applications such as data acquisition, IoT gateway, IoT security and protection. Full documentation is available on the product Wiki page.
Features
- RJ45 Ethernet connector
- Communication speed: 10/100 Mbps
- Interface protection: 2 kV electromagnetic isolation
- Power and signal isolation
- WiFi function:
- Frequency band: 2.412 to 2.484 GHz
- Wireless network: Station mode / AP / AP+Station
- Security mechanism: WPA-PSK / WPA2-PSK
- Encryption type: TKIP/AES
- Transmit power:
- 802.11b: +19dBm (max. at 11Mbps)
- 802.11g: +18dBm (max. at 54Mbps)
- 802.11n: +17dBm (max@HT20, MCS7); +17 dBm (max. at HT40, MCS7)
- Reception sensitivity:
- 802.11b: -89dBm (at 11Mbps)
- 802.11g: -81dBm at 54Mbps)
- 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
- RS485 port on the screw connector and RS232 on the DB9 connector
- Serial communication:
- Transmission speed: 300 to 460800 bps
- Data bits: 5 to 9 bits
- Parity bit: none, odd, even, sign, space
- TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT
- Configuration: web browser, device management library
- Direct TCP/IP, VCOM communication
- Operating mode: transparent transmission, serial command, HTTPD client, Modbus TCP to Modbus RTU
- Power supply: 6 to 36 V, PoE port
- Operating temperature: -40 to 85°C
- Storage temperature: -45 to 125°C
- Dimensions: 84 x 64 x 24 mm
Kit contains
- RS232/485 TO WIFI POE ETH (B)
- 2.4G Wi-Fi antenna
- Rail mounting bracket
- Screwdriver
- Screw set
1187925
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like

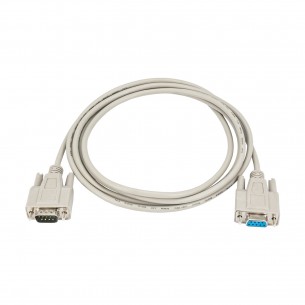

RS-232 D-Sub (f) / D-Sub (m) cable, 2 m long. Akyga AK-CO-01
zł10.46
24h
Available quantity: 2
Available
2m RS-232 D-Sub (f) / D-Sub (f) cable, uncrossed. Akyga AK-CO-04
zł9.20
24h
Available quantity: 7
Available
Ethernet patch cord UTP 5E, 2 m long. Red color, with RJ45 connectors. Lanberg Z22990
zł3.10
24h
Available quantity: 37
Available
Unshielded UTP category 5E Ethernet network cable with RJ45 plugs. Lanberg PCU5-10CC-0200-BK
zł3.00
24h
Available quantity: 16
Available
Unshielded UTP category 5E Ethernet network cable with RJ45 plugs. Lanberg PCU5-10CC-0200-B
zł3.00
24h
Available quantity: 25
Available
Other products in the same category (16)
Development kit for programmable Ethernet modules EM1202, EM500 and GA1000, RoHS
zł38.90
24h
Available quantity: 4
Available
USB 3.2 Gen1 to Gigabit Ethernet converter based on the efficient Realtek RTL8153 controller. It is compatible with Win7 / 8 / 8.1 / 10, Mac, Linux and Android systems. Waveshare USB 3.2 Gen1 TO Gigabit ETH
zł71.43
24h
Available quantity: 3
Available
SoI (Serial-over-IP) converter that provides easy communication between the UART serial interface and RJ45 Ethernet. Tibbo EM100-04
zł244.91
4 weeks
No product available!
Universal module supervised by the website, which can control both DC circuits as well as powered from 230 V mains. The states of digital inputs, relays and control buttons are presented on the website. AVTMOD05
zł403.19
24h
Available quantity: 1
Available
Ethernet board with mini SD card slot based on W5100 controller.
zł35.36
4 weeks
No product available!
UART - Ethernet converter enabling two-way communication between devices equipped with UART TTL ports and the Ethernet network. It is visible in the system as a virtual COM port and configured via the website. USR-K7
zł78.90
4 weeks
No product available!
Power over Ethernet (PoE) demonstration board based on the L6565, STM, RoHS
zł753.77
24h
Available quantity: 8
Available
Gigabit Ethernet expansion module with RTL8211E-VB-CG chip (integrated Realtek Ethernet transceiver) and 4 RJ45 ports. It complies with 10BASE-T, 100BASE-TX and 1000Base-T IEEE 802.3 standards. Numato Lab NLFMCET001
zł1,966.00
3 weeks
No product available!
Industrial RS232 - Ethernet converter. It is equipped with PoE function and is DIN-rail mounted. Waveshare RS232 TO POE ETH (B)
zł109.54
4 weeks
No product available!
RS232/RS485 to WiFi and Ethernet converter that provides easy communication between RS232 or RS485 interface and WiFi wireless network and wired LAN network. Supports the Modbus RTU protocol. USR-W630
zł238.83
24h
Available quantity: 14
Available
Ethernet network module with W5500 chip and PoE (Power over Ethernet) function. It communicates via the SPI interface, it has a built-in TCP/IP stack. DFRobot DFR0850
zł136.89
24h
Available quantity: 1
Available
A converter that ensures easy communication between the RS232/RS485/RS422 interface and RJ45 Ethernet. It supports popular network protocols, including IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Websocket and HTTP client, as well as Modbus RTU and Modbus TCP protocols. USR-N520
zł260.28
24h
Available quantity: 5
Available
4-channel RS485 to Ethernet converter designed for industrial environments. Connects serial server, Modbus gateway, MQTT gateway, RS485 to JSON. It has four RS485 ports and one Ethernet port. Waveshare 4-CH RS485 TO ETH (B)
zł226.89
24h
Available quantity: 10
Available
The module allows the existence of devices with BLE in networks with the Ethernet protocol, has a BT2.1 receiver
zł226.32
24h
Available quantity: 1
Available

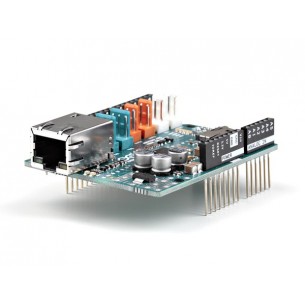

The Arduino Ethernet Shield 2 allows an Arduino Board to connect to the internet. It is based on the Wiznet W5500 Ethernet chip. The Wiznet W5500 provides a network (IP) stack capable of both TCP and UDP. There is an onboard micro-SD card slot, which can be used to store files for serving over the network. It is compatible with the Arduino Uno and Mega
