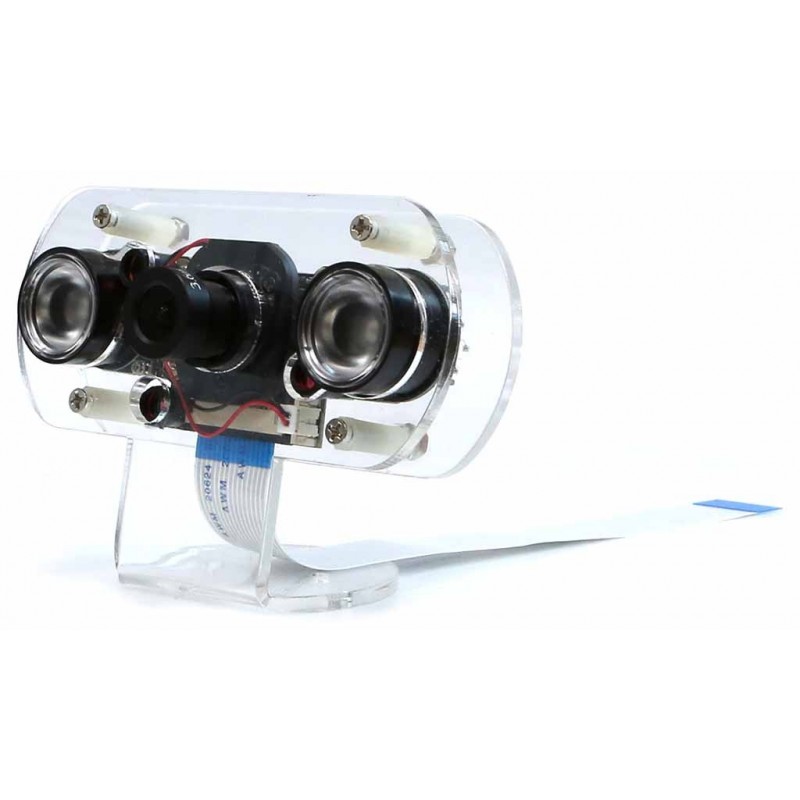

M1 MIPI-CSI Camera Kit - set with OV5647 5MP camera for ODROID-M1
ID: 1178975
5906623437320
zł149.00
Tax included
zł121.14 tax excl.
Module with OV5647 sensor cooperating with ODROID-M1. It uses a built-in movable IR-CUT filter that is turned on and off automatically depending on the lighting conditions. Odroid M1 MIPI-CSI Camera Kit
Description
Module with OV5647 sensor cooperating with ODROID-M1. The sensor used has a matrix of 5 MP and allows you to record video in 1080p resolution. The module uses a built-in movable IR-CUT filter, which is turned on and off automatically depending on the lighting conditions. The camera is equipped with a 76 ° lens. The camera is perfect for applications such as 3D printing monitoring or image recognition. The set with the camera includes a connection tape, housing and two IR light sources. Full documentation is available on the product Wiki page.
Features
- OV5647 sensor
- Sensor size: 1/4"
- Resolution: 5MP 2592x1944
- Video: 1080p
- Lens
- Focal length: 1.8 mm
- Field of View (FOV): 76°
- Mounting: M12
- A 3.3 V output for the IR diode
- Two IR light sources
- Built-in movable IR Cut filter
- Dimension: 31x32 mm
Kit contains
- Module with 5MP OV5467 sensor and lens
- 2 x IR LED lighting
- 2 x heat sink
- FPC tape
- A set of screws
- Acrylic mounts
1178975
Data sheet
- Resolution
- 5MPx
- Interface
- MIPI CSI-2
- Sensor
- OV5647
- IR filter
- Other
- Lens assembly
- none
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
Single board computer with Cortex-A55 quad-core processor and Mali-G52 GPU. The set is equipped with 4GB of RAM and a connector for eMMC memory and microSD cards, as well as an Ethernet, HDMI, USB 3.0 socket. Hardkernel Odroid-M1
zł499.00
24h
Available quantity: 8
Available
Single board computer with Cortex-A55 quad-core processor and Mali-G52 GPU. The set is equipped with 8GB of RAM and a connector for eMMC memory and microSD cards, as well as an Ethernet, HDMI, USB 3.0 socket. Hardkernel Odroid-M1
zł629.00
24h
Available quantity: 1
Available
Other products in the same category (16)
Camera with a resolution of 2 MPx with a USB interface. Equipped with CMOS IMX291 sensor with "Fisheye" lens with 175° viewing angle and microphone. ArduCAM B0261
zł289.67
24h
Available quantity: 1
Available
Camera module with 5 MPx matrix, autofocus and CMOS sensor with JPEG output. Based on the Omnivision OV5640 image sensor. ArduCAM B0158
zł141.55
24h
Available quantity: 3
Available
1 MP camera with USB interface. Equipped with a wide-angle lens with a viewing angle of 140°. DFRobot FIT0892
zł100.44
24h
Available quantity: 1
Available
Camera with CMOS sensor GC0308 with a resolution of 640x480 px. Equipped with motion detection, it communicates via a parallel interface. ArduCAM U6031-LEN
zł16.42
24h
Available quantity: 6
Available
Camera with OV7251 CMOS sensor with a resolution of 640x480 px. Equipped with a snapshot, it communicates via 1-lane MIPI interface. ArduCAM U6070
zł99.11
24h
Available quantity: 2
Available
Camera module based on the CMOS MT9V034 matrix with a resolution of 752x480 px (0.36 MPx). Intended for use with OpenMV kits. SparkFun SEN-16775
zł392.03
3 weeks
No product available!

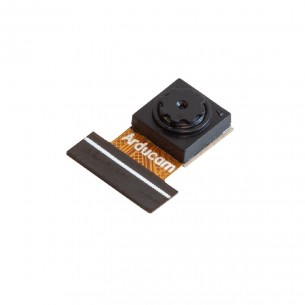

Camera designed for RP2040 development boards. It uses the Himax HM0360 sensor with a resolution of 640x480 px. ArduCAM B0336
