RP2040-Zero - board with RP2040 microcontroller (without connectors)
ID: 588235
5906623439706
zł15.18
Tax included
zł12.34 tax excl.
The board with the RP2040 microcontroller equipped with two ARM Cortex-M0+ cores, which work at a frequency of 133 MHz, 264 kB RAM. The board also has 2 MB of QSPI flash memory. The system can be programmed in C/C++ or MicroPython. Waveshare RP2040-Zero
Description
The board is equipped with the RP2040 microcontroller designed by the Raspberry Pi foundation. The system has two ARM Cortex M0+ cores operating at a frequency of 133 MHz and 264 KB of RAM. The microcontroller is not equipped with flash memory, but on the board there is an external memory with a capacity of 2 MB connected via the QSPI interface.
| 1. USB type C | 5. WS2812 |
| 2. NOR-Flash 2 MB W25Q16JVUXIQ | 6. ME6217C33M5G |
| 3. BOOT | 7. RP2040 |
| 4. RESET | 8. GPIO |
In addition to the RP2040 system and Flash memory, the user has a 3.3 V voltage regulator, Boot and Power buttons, an RGB diode, a USB type C connector for powering and programming the module and GPIO outputs, on which such peripherals as 12-bit were led out ADC, PWM inputs, I2C, SPI and UART interface.
The platform supports the popular MicroPython and C/C++ programming languages. Programs can be uploaded to memory via USB interface. The guide with examples of use is available on the product page.
Comparison table of boards with RP2040 microcontroller
Features
- RP2040 microcontroller designed by Raspberry Pi
- Two ARM Cortex-M0 + cores clocked up to 133 MHz
- 264 kB of onboard SRAM
- LDO stabilizer 3.3 V 800 mA
- Built-in USB-C connector for programming and power
- 29 x multi-functional GPIO pins
- 4 x 12-bit ADC inputs with temperature sensor
- 16 x PWM
- 2 x UART
- 2 x I2C
- 2 x SPI
- Power and Boot buttons
- RGB LED WS2812
- 2 MB of external flash memory
- Supported programming languages: MicroPython and C/C++
- Dimensions: 23.5 x 18 mm
588235
Data sheet
- Microcontroller
- RP2040
- Flash memory
- 2 MB
- Number of I/O
- 29
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 23,5 mm
- Width
- 18 mm
- USB connector type
- USB type C
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
Pin header goldpin yellow 1x40 pins. Straight connector for through-hole assembly. 2.54mm pitch.
zł1.23
24h
Available quantity: 211
Available
Cable with USB typ A and USB typ C connectors, cable length 1 m. LANBERG CA-USBO-10CC-0010-BK
zł5.71
24h
Available quantity: 22
Available
Cable with USB typ A and USB typ C connectors, cable length 1,8 m. LANBERG CA-USBO-10CC-0018-BK
zł5.77
24h
Available quantity: 32
Available
The board with the RP2040 microcontroller equipped with two ARM Cortex-M0 + cores operating at a frequency of 133 MHz, 264 kB RAM. There is as much as 16 MB of QSPI flash memory on the board. The system can be programmed in C / C ++ or microPython. KApico RP2040
zł16.90
24h
Available quantity: 15
Available
The board with the RP2040 microcontroller equipped with two ARM Cortex-M0 + cores operating at a frequency of 133 MHz, 264 kB RAM. There is as much as 16 MB of QSPI flash memory on the board. The system can be programmed in C / C ++ or microPython. Soldered connectors. KApico RP2040
zł19.90
24h
Available quantity: 69
Available
The board with the RP2040 microcontroller equipped with two ARM Cortex-M0+ cores, which work at a frequency of 133 MHz, 264 kB RAM. The board also has 2 MB of QSPI flash memory. The system can be programmed in C/C++ or MicroPython. Waveshare RP2040-Zero-M
zł20.00
24h
Available quantity: 13
Available
Other products in the same category (16)
Development board with RP2040 and ESP-12E microcontroller. Equipped with 0.91" OLED display. SB Components 24186
zł89.40
24h
Available quantity: 2
Available
Development board based on the RP2040 microcontroller. It is equipped with a 1.14" color LCD display and a built-in debugging tool via USB interface. The board is enclosed in a plastic housing. Waveshare RP2040-GEEK
zł53.90
24h
Available quantity: 5
Available
Module with the RP2040 microcontroller with two ARM Cortex-M0 + cores operating at 133 MHz, 256 kB RAM and 30 GPIO. The board also has 2 MB of external QSPI flash memory. Module can be programmed in C/C++ or microPython. Version with soldered connectors. Raspberry Pi SC0917
zł23.90
24h
Available quantity: 123
Available
The RP2040 microcontroller board features two ARM Cortex-M0+ cores running at 133 MHz, 264 kB of RAM. The board also features 2 MB of QSPI flash memory and an FPC connector. The chip can be programmed in C/C++ or MicroPython. Waveshare RP2040-Tiny
zł20.01
24h
Available quantity: 47
Available
Module with ePaper 2.9" display and RP2040 microcontroller. Equipped with QW/ST connector. Pimoroni PIM607
zł130.07
24h
Available quantity: 11
Available
Module with ePaper 2.9" display and RP2040 microcontroller. Equipped with QW/ST connector. Accessories included. Pimoroni PIM610
zł154.89
24h
Available quantity: 1
Available

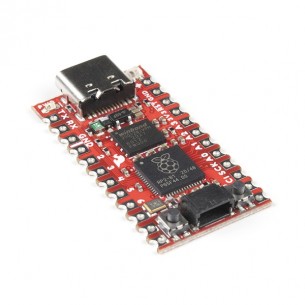

The board with the RP2040 microcontroller equipped with two ARM Cortex-M0 + cores operating at 133 MHz, 256 kB RAM. The board also has 16 MB of QSPI flash memory. The system can be programmed in C/C++ or microPython. SparkFun DEV-18288
