MDD3A DC Motor Driver 3A 4V-16V (2 Channels)
search
  • MDD3A DC Motor Driver 3A 4V-16V (2 Channels)
ID: 578534
5906623405398
zł39.34
Tax included

zł31.98 tax excl.

Two-channel driver of direct current (DC) motors with an operating voltage from 4 to 16 V and a maximum continuous current of 3 A. It can be controlled by a PWM signal or by means of built-in buttons. Cytron MDD3A

24h
Available
Available quantity: 5
Kamami is the official distributor of Cytron modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

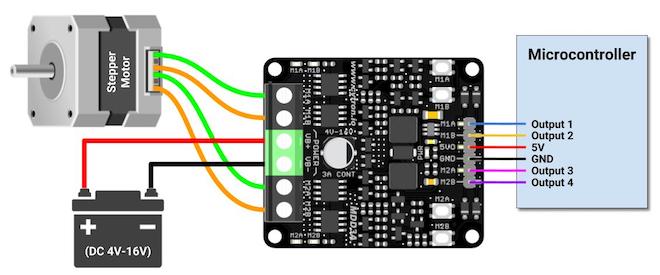

Dual-channel DC motor driver that can also work as a stepper motor driver. It allows you to control the movement of motors with a supply voltage from 4 to 16 V and a current consumption of up to 3 A (continuous current). The control can be done via the PWM signal or using the built-in buttons, which allow very easy testing of the drives without the need to connect a controller. The module can work with 1.8 V, 3.3 V, 5 V and 12 V systems, making it compatible with all popular development boards. In the GitHub repository, the Arduino library is available along with the user manual.

Features

  • Dual-channel DC motor driver
  • Stepper motor driver
  • Motor supply voltage from 4 V to 16 V
  • Maximum continuous current up to 3 A and temporary 5 A
  • 1.8 V, 3.3 V, 5 V or 12 V control voltage
  • The components used ensure a quick reaction time
  • Screw connection for power and motor connection
  • Control buttons
  • 5-pin control connector
  • Speed control by PWM signal up to 20 kHz
  • Dimensions: 40 x 50 x 13 mm
578534

Data sheet

Output current
3A
Number of channels
2
Supply voltage min
4 V
Supply voltages max
16 V
