STEMMA QT BMP390 Precision Barometric Pressure and Altimeter - module with a pressure sensor
ID: 587212
5906623430123
zł58.34
Tax included
zł47.43 tax excl.
Module with digital barometer BMP390. It enables pressure measurement from 300 to 1250 hPa and temperature from -40℃ to 85℃. Communicates via I2C or SPI. Adafruit 4816
Description
Module with digital barometer BMP390. It enables pressure measurement in the range from 300 to 1250 hPa with an accuracy of ± 3 Pa, which in relation to height gives an accuracy of 0.25 m. The system also allows temperature measurement in the range from -40 ℃ to 85 ℃. The sensor uses Bosch piezoresistive pressure sensor technology, characterized by high accuracy, low energy consumption and high resistance to electromagnetic interference, which makes it ideal for industrial applications. It can work with systems with a working voltage of 3.3 V, and communication is via the I2C interface (STEMMA QT connector) or SPI. Full documentation with examples is available on the product page.
Features
- Pressure measurement range: 300 to 1250 hPa
- Relative accuracy: ± 3 Pa (± 0.25 m at 700-1100 hPa, 25 ℃ -40 ℃)
- Absolute accuracy: ± 50 Pa
- Temperature coefficient: ± 0.6 Pa/K (-20 ℃ -40 ℃ at 900 hPa)
- Temperature measurement range: -40 ℃ to 85 ℃
- Interface: I2C or SPI
- I2C address: 0x77 (default), 0x76
- Voltage: 3.3V
- Current consumption: 0.65 mA
- STEMMA QT connector
Kit contains
- STEMMA QT BMP390 Precision Barometric Pressure and Altimeter
- 8-pin straight male goldpin connector
587212
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 V
- Sensor type
- Ciśnienia atmosferycznego
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland [email protected] 22 767 36 20
You might also like
Flexible Qwiic cable 150 mm long. On one side it is terminated with a female Qwiic connector, and on the other side with single male goldpin connectors. SparkFun PRT-17912
zł8.83
Delivery date unknown
No product available!

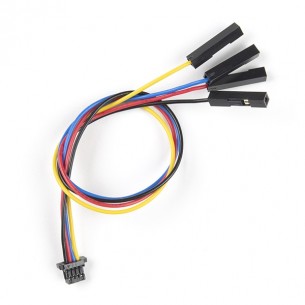

Flexible Qwiic cable, 150 mm long. On one side it is terminated with a female Qwiic connector, and on the other side with single female goldpin connectors. SparkFun PRT-17261
